As part of the design team for the Westbound Peak Period Shoulder Lane on I-70, Chinook developed a unique set of processes to collect 3D data of existing rockfaces with drones, convert this data for use by the geotechnical engineers, and then model proposed geohazard mitigation techniques. These proposed conditions models are then used for stakeholder engagement, visualization, and converted for analysis by the geotechnical engineers. These innovations reduce safety risks, improve contextual awareness for the entire design team, and are approximately 1/3-1/2 the cost of the traditional data collection methods.

Westbound Peak Period Shoulder Lane

Location: I-70, Clear Creek County, CO

Client: HDR, CDOT

Status: In progress

Timeframe: January 2018-completion

More

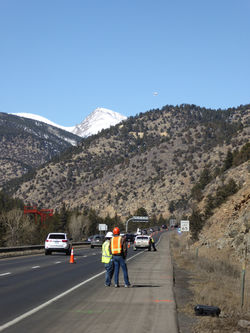

Flying along I-70
Flying along I-70
Photo points collected via drone
Flying along I-70
3D Model of rockfall mesh system
3D mesh from drone data
Flight path data from drone
Collecting Ground Control Points
Adding control point data
Geohazard mitigation analysis
3D Model of rockfall mesh system
3D mesh from drone data
Traffic control along I-70

Interactive 3D Model

(1/8 of overall project)
